StepperBase< T > Class Template Reference

The virtual mother stepper class which defines constructor and method in common for all the methods. More...

#include <stepper_def.hpp>

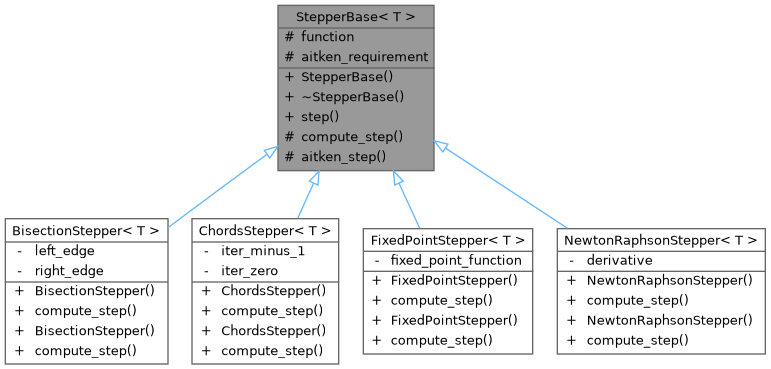

Inheritance diagram for StepperBase< T >:

Collaboration diagram for StepperBase< T >:

Public Member Functions
	StepperBase (std::function< double(double)> fun, bool aitken_mode)
	Constructor for virtual Stepper class, which will be inherited by the daughters.
virtual	~StepperBase ()=default
Eigen::Vector2d	step (Eigen::Vector2d previous_step)
	Method handling all the steps involved in computing the new guess.

Protected Member Functions
virtual Eigen::Vector2d	compute_step (Eigen::Vector2d)=0
	Virtual function to compute the step for the method -> overridden by all the methods.
Eigen::Vector2d	aitken_step (Eigen::Vector2d previous_iter)
	Method to handle the computation of a step using Aitken's acceleration.

Protected Attributes
std::function< double(double)>	function
	Function to compute the root of.
bool	aitken_requirement
	Option to use Aitken's acceleration.

Detailed Description

template<typename T>
class StepperBase< T >

The virtual mother stepper class which defines constructor and method in common for all the methods.

Constructor & Destructor Documentation

StepperBase()

template<typename T >

StepperBase< T >::StepperBase	(	std::function< double(double)>	fun,
		bool	aitken_mode
	)

Constructor for virtual Stepper class, which will be inherited by the daughters.

Parameters

fun	Function to compute the root of
aitken_mode	Option to apply or not the Aitken's acceleration

~StepperBase()

template<typename T >

virtual StepperBase< T >::~StepperBase ( )

virtualdefault

Member Function Documentation

aitken_step()

template<typename T >

Eigen::Vector2d StepperBase< T >::aitken_step ( Eigen::Vector2d  previous_iter )

protected

Method to handle the computation of a step using Aitken's acceleration.

Parameters

previous_iter

2-dimensional vector storing x(i-1) and f(x(i-1))

Returns

2-dimensional vector storing x(i) - computed with the 3 Aitken's steps - and f(x(i))

compute_step()

template<typename T >

virtual Eigen::Vector2d StepperBase< T >::compute_step ( Eigen::Vector2d  )

protectedpure virtual

Virtual function to compute the step for the method -> overridden by all the methods.

Parameters

previous_iteration

2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses

Returns

2-dimensional vector storing x(i) and f(x(i)) - new guesses

Implemented in ChordsStepper< T >, BisectionStepper< T >, NewtonRaphsonStepper< T >, FixedPointStepper< T >, NewtonRaphsonStepper< T >, FixedPointStepper< T >, ChordsStepper< T >, and BisectionStepper< T >.

step()

template<typename T >

Eigen::Vector2d StepperBase< T >::step

(

Eigen::Vector2d

previous_step

)

Method handling all the steps involved in computing the new guess.

Parameters

previous_step

2-dimensional vector storing x(i-1) and f(x(i-1)) previous guesses of the method

Returns

2-dimensional vector storing x(i) and f(x(i)) new guesses of the method

Member Data Documentation

aitken_requirement

template<typename T >

bool StepperBase< T >::aitken_requirement

protected

Option to use Aitken's acceleration.

function

template<typename T >

std::function<double(double)> StepperBase< T >::function

protected

Function to compute the root of.

---

The documentation for this class was generated from the following files:

• libROOT/libROOT/solver_def.hpp
• libROOT/libROOT/stepper_def.hpp
• libROOT/libROOT/stepper.hpp
