FixedPointStepper< T > Class Template Reference

The specialized Stepper to compute a step with the Fixed Point method. More...

#include <stepper_def.hpp>

Inheritance diagram for FixedPointStepper< T >:

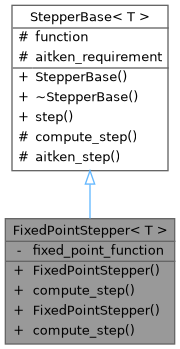

Collaboration diagram for FixedPointStepper< T >:

Public Member Functions
	FixedPointStepper (std::function< double(double)> fun, bool aitken_mode, std::function< double(double)> g_fun)
	The specialized constructor - initializes the function and the fixed point function.
Eigen::Vector2d	compute_step (Eigen::Vector2d previous_iteration) override
	Specialized method to compute and return a new step with FP.
	FixedPointStepper (std::function< double(double)> fun, bool aitken_mode, std::function< double(double)> g_fun)
Eigen::Vector2d	compute_step (Eigen::Vector2d previous_iteration)
	Virtual function to compute the step for the method -> overridden by all the methods.
Public Member Functions inherited from StepperBase< T >
	StepperBase (std::function< double(double)> fun, bool aitken_mode)
	Constructor for virtual Stepper class, which will be inherited by the daughters.
virtual	~StepperBase ()=default
Eigen::Vector2d	step (Eigen::Vector2d previous_step)
	Method handling all the steps involved in computing the new guess.

Private Attributes
std::function< double(double)>	fixed_point_function
	tores the fixed point to use in the steps

Additional Inherited Members
Protected Member Functions inherited from StepperBase< T >
Eigen::Vector2d	aitken_step (Eigen::Vector2d previous_iter)
	Method to handle the computation of a step using Aitken's acceleration.
Protected Attributes inherited from StepperBase< T >
std::function< double(double)>	function
	Function to compute the root of.
bool	aitken_requirement
	Option to use Aitken's acceleration.

Detailed Description

template<typename T>
class FixedPointStepper< T >

The specialized Stepper to compute a step with the Fixed Point method.

Constructor & Destructor Documentation

FixedPointStepper() [1/2]

template<typename T >

FixedPointStepper< T >::FixedPointStepper	(	std::function< double(double)>	fun,
		bool	aitken_mode,
		std::function< double(double)>	g_fun
	)

The specialized constructor - initializes the function and the fixed point function.

Parameters

fun	The function to compute the root of
aitken_mode	Option to use Aitken's acceleration
g_fun	The fixed point function such that g_fun(x) = x, needed for FP method

FixedPointStepper() [2/2]

FixedPointStepper< double >::FixedPointStepper	(	std::function< double(double)>	fun,
		bool	aitken_mode,
		std::function< double(double)>	g_fun
	)

Member Function Documentation

compute_step() [1/2]

Eigen::Vector2d FixedPointStepper< double >::compute_step ( Eigen::Vector2d  )

virtual

Virtual function to compute the step for the method -> overridden by all the methods.

Parameters

previous_iteration

2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses

Returns

2-dimensional vector storing x(i) and f(x(i)) - new guesses

Implements StepperBase< T >.

compute_step() [2/2]

template<typename T >

Eigen::Vector2d FixedPointStepper< T >::compute_step ( Eigen::Vector2d  previous_iteration )

overridevirtual

Specialized method to compute and return a new step with FP.

Parameters

previous_iteration

2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses

Returns

2-dimensional vector storing x(i) = g_fun(x(i-1)) - where g_fun is the fixed point function - and f(x(i))

Implements StepperBase< T >.

Member Data Documentation

fixed_point_function

template<typename T >

std::function<double(double)> FixedPointStepper< T >::fixed_point_function

private

tores the fixed point to use in the steps

---

The documentation for this class was generated from the following file:

• libROOT/libROOT/stepper_def.hpp
