NewtonRaphsonStepper< T > Class Template Reference

The specialized Stepper to compute a step with the Newton-Raphson method. More...

#include <stepper_def.hpp>

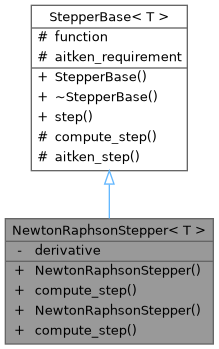

Inheritance diagram for NewtonRaphsonStepper< T >:

Collaboration diagram for NewtonRaphsonStepper< T >:

Public Member Functions
	NewtonRaphsonStepper (std::function< double(double)> fun, bool aitken_mode, std::function< double(double)> der)
	The specialized constructor - initializes the function and the derivative.
Eigen::Vector2d	compute_step (Eigen::Vector2d previous_iteration) override
	Specialized method to compute and return a new step with NR.
	NewtonRaphsonStepper (std::function< double(double)> fun, bool aitken_mode, std::function< double(double)> der)
Eigen::Vector2d	compute_step (Eigen::Vector2d previous_iteration)
	Virtual function to compute the step for the method -> overridden by all the methods.
Public Member Functions inherited from StepperBase< T >
	StepperBase (std::function< double(double)> fun, bool aitken_mode)
	Constructor for virtual Stepper class, which will be inherited by the daughters.
virtual	~StepperBase ()=default
Eigen::Vector2d	step (Eigen::Vector2d previous_step)
	Method handling all the steps involved in computing the new guess.

Private Attributes
std::function< double(double)>	derivative
	Stores the derivative of the function.

Additional Inherited Members
Protected Member Functions inherited from StepperBase< T >
Eigen::Vector2d	aitken_step (Eigen::Vector2d previous_iter)
	Method to handle the computation of a step using Aitken's acceleration.
Protected Attributes inherited from StepperBase< T >
std::function< double(double)>	function
	Function to compute the root of.
bool	aitken_requirement
	Option to use Aitken's acceleration.

Detailed Description

template<typename T>
class NewtonRaphsonStepper< T >

The specialized Stepper to compute a step with the Newton-Raphson method.

Constructor & Destructor Documentation

NewtonRaphsonStepper() [1/2]

template<typename T >

NewtonRaphsonStepper< T >::NewtonRaphsonStepper	(	std::function< double(double)>	fun,
		bool	aitken_mode,
		std::function< double(double)>	der
	)

The specialized constructor - initializes the function and the derivative.

Parameters

fun	The function to compute the root of
aitken_mode	Option to use Aitken's acceleration
der	The derivative of the function, needed for NR method

NewtonRaphsonStepper() [2/2]

NewtonRaphsonStepper< double >::NewtonRaphsonStepper	(	std::function< double(double)>	fun,
		bool	aitken_mode,
		std::function< double(double)>	der
	)

Member Function Documentation

compute_step() [1/2]

Eigen::Vector2d NewtonRaphsonStepper< double >::compute_step ( Eigen::Vector2d  )

virtual

Virtual function to compute the step for the method -> overridden by all the methods.

Parameters

previous_iteration

2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses

Returns

2-dimensional vector storing x(i) and f(x(i)) - new guesses

Implements StepperBase< T >.

compute_step() [2/2]

template<typename T >

Eigen::Vector2d NewtonRaphsonStepper< T >::compute_step ( Eigen::Vector2d  previous_iteration )

overridevirtual

Specialized method to compute and return a new step with NR.

Parameters

previous_iteration

2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses

Returns

2-dimensional vector storing x(i) = x(i-1) - f(x(i-1)) / f'(x(i-1)) and f(x(i)) - new guesses

Implements StepperBase< T >.

Member Data Documentation

derivative

template<typename T >

std::function<double(double)> NewtonRaphsonStepper< T >::derivative

private

Stores the derivative of the function.

---

The documentation for this class was generated from the following file:

• libROOT/libROOT/stepper_def.hpp
