The specialized Stepper to compute a step with the Bisection Method. More...
#include <stepper_def.hpp>
Inheritance diagram for BisectionStepper< T >:

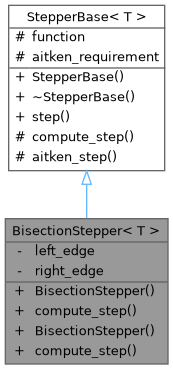

Collaboration diagram for BisectionStepper< T >:
Public Member Functions | |
| BisectionStepper (std::function< double(double)> fun, bool aitken_mode, Eigen::Vector2d _int) | |
| Constructor of a BisectionStepper object. | |
| Eigen::Vector2d | compute_step (Eigen::Vector2d previous_iteration) override |
| Specialized method to compute and return a new step with Bisection. Let left_edge = a, right_edge = b; then we have an interval [a,b] such that f(a)*f(b) < 0; We compute x_new = (a+b)/2; if f(a)*f(x_new) < 0 then a_new = a, b_new = x_new, otherwise a_new = x_new, b_new = b -> left_edge = a_new, right_edge = b_new. | |
| BisectionStepper (std::function< double(double)> fun, bool aitken_mode, Eigen::Vector2d _int) | |
| Eigen::Vector2d | compute_step (Eigen::Vector2d last_iter) |
| Virtual function to compute the step for the method -> overridden by all the methods. | |
 Public Member Functions inherited from StepperBase< T > | |
| StepperBase (std::function< double(double)> fun, bool aitken_mode) | |
| Constructor for virtual Stepper class, which will be inherited by the daughters. | |
| virtual | ~StepperBase ()=default |
| Eigen::Vector2d | step (Eigen::Vector2d previous_step) |
| Method handling all the steps involved in computing the new guess. | |
Private Attributes | |
| double | left_edge |
| double | right_edge |
| Bounds of the interval to use (updated at each step) | |
Additional Inherited Members | |
| Protected Member Functions inherited from StepperBase< T > | |
| Eigen::Vector2d | aitken_step (Eigen::Vector2d previous_iter) |
| Method to handle the computation of a step using Aitken's acceleration. | |
| Protected Attributes inherited from StepperBase< T > | |
| std::function< double(double)> | function |
| Function to compute the root of. | |
| bool | aitken_requirement |
| Option to use Aitken's acceleration. | |
Detailed Description
template<typename T>
class BisectionStepper< T >
class BisectionStepper< T >
The specialized Stepper to compute a step with the Bisection Method.
Constructor & Destructor Documentation
◆ BisectionStepper() [1/2]
template<typename T >
| BisectionStepper< T >::BisectionStepper | ( | std::function< double(double)> | fun, |
| bool | aitken_mode, | ||
| Eigen::Vector2d | _int | ||
| ) |
Constructor of a BisectionStepper object.
- Parameters
-
fun The function to find the root of aitken_mode Option to use Aitken's acceleration _int Initial interval such that f(_int(0))*f(_int(1)) < 0
◆ BisectionStepper() [2/2]
| BisectionStepper< Eigen::Vector2d >::BisectionStepper | ( | std::function< double(double)> | fun, |
| bool | aitken_mode, | ||
| Eigen::Vector2d | _int | ||
| ) |
Member Function Documentation
◆ compute_step() [1/2]
|
virtual |
Virtual function to compute the step for the method -> overridden by all the methods.
- Parameters
-
previous_iteration 2-dimensional vector storing x(i-1) and f(x(i-1)) - previous guesses
- Returns
- 2-dimensional vector storing x(i) and f(x(i)) - new guesses
Implements StepperBase< T >.
◆ compute_step() [2/2]
template<typename T >
|
overridevirtual |
Specialized method to compute and return a new step with Bisection. Let left_edge = a, right_edge = b; then we have an interval [a,b] such that f(a)*f(b) < 0; We compute x_new = (a+b)/2; if f(a)*f(x_new) < 0 then a_new = a, b_new = x_new, otherwise a_new = x_new, b_new = b -> left_edge = a_new, right_edge = b_new.
- Parameters
-
previous_iteration 2-dimensional vector storing x(i-1) and f(x(i-1)) - old guesses
- Returns
- 2-dimensional vector storing x(i) = (left_edge + right_edge) / 2 and f(x(i)) - new guesses
Implements StepperBase< T >.
Member Data Documentation
◆ left_edge
template<typename T >
|
private |
◆ right_edge
template<typename T >
|
private |
Bounds of the interval to use (updated at each step)
The documentation for this class was generated from the following file:
- libROOT/libROOT/stepper_def.hpp
